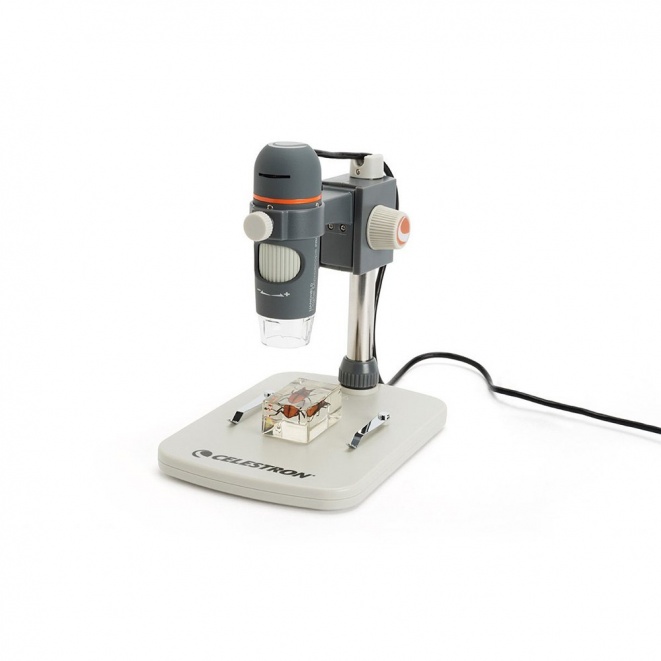

The Celestron Handheld Digital Microscope Pro is an easy to use, low-power microscope with a 5.0 MP sensor for capturing photos and video of your discoveries. At low magnification, the Handheld Digital Microscope Pro is ideal for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. You can even view traditional slides at high magnification.
Create high-resolution images, VGA quality video, and time-lapse animations using the included Micro Capture Pro software. You can also take accurate measurements and make notes on your specimens using this intuitive software. An adjustable LED illuminator ensures your specimens are clear and bright, while the fully adjustable, professional stand allows for steady shots even at high magnification.
Intended for the discriminating hobbyist or professional, the Handheld Digital Microscope Pro is well suited for jobs such as entomology, industrial quality control, component inspection, medical investigation, scientific research, and forensics documentation—just to name a few.
Included Accessories: High-quality adjustable height stand, Celestron Micro Capture Pro Software CD with measuring feature, Calibration ruler
Features
- True 5MP sensor to capture and save high-resolution images and videos of your specimens
- 5-Element IR cut high-quality glass lens ensures sharper images
- 20x to 200x powers, great for low-power observation of 3D specimens (Note: Final magnification determined by monitor size)
- Professional, adjustable height stand included for hands-free operation
- 4 foot USB 2.0 cable for easy maneuverability when viewing large surfaces
- Intuitive software with measuring features
- Windows and Mac compatible
Specifications
Focuser Range: Manual focus from 10mm to infinity
Illuminator: Adjustable 8 LED ring
Imaging Sensor: 5MP CMOS 1/3.2", 1600 x 1200 pixel array
Included Accessories: Stand, CD/DVD with software and manual, lens cloth, calibration ruler
Lens: 5 element IR Cut (Infrared reducing) high quality glass lens, EFL (Effective Focal Length) : 15.8mm, image distortion: 0.10%, FOV: 13.0"
Magnification (high power): 200 x
Magnification (low power): 20 x
Measuring Software: Robust measuring software- Celestron, Micro Capture Pro- with note taking capabilities.
Microscope: 110x35mm (4.33"x1.38")
OS Systems Supported: Windows XP or better, Mac 10.6 or better
PC connection/Interface: 2.0 USB
Shutter Speed: 1 sec. to 1/1000 sec.
Shutter Trigger: On USB cord (and in software)
Software languages supported: English, German, French, Spanish, Russian, Italian, Portuguese, Dutch, Polish, Japanese, Korean, Chinese
Stand Professional stand with height adjustment
Stand_1: 175x140x110mm (6.90"x5.51"x4.33")
Still Image Resolution: 5MP, 3MP, 1.3MP, VGA (12MP interpolation)
Video Capture Resolution: VGA, 30fps
Weight (Microscope and Stand): 2 lbs (907 g)
